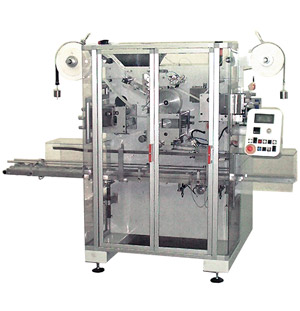

Packaging machine - series "MF_ST"

This packaging machine is employed in various industrial sectors; it is a machine with a highly productive continuous rotary movement.

The batching control system is personalised in accordance with the product to be packaged.

The machine utilises a single reel of film and is employed in the packaging of single piece products in 4-side heat-sealed packets, such as capsules, tablets, sweets, toothpicks, tongue depressors, mechanical small items and seeds in general etc.

It is manufactured in versions from 2 to 10 tracks and may reach a speed of 300 cycles per minute, in accordance with the packet format, determined by the product to be packaged and the type of heat-sealed wrapper utilised.

Thanks to its engine, managed completely by a brushless motor for variable formats and the touch-screen interface with the operators, this machine permits the repair of synchronisation and functions while in operation, ensuring high performance, and can memorise up to 200 work programmes.

Reliable and simple to use, it does not require high maintenance or qualified personnel, an on-line support system is possible via modem for the control and modification of management software.

This is a compact, harmonious and rounded line, facilitating cleaning activities.

Example of some of the packets produced

Range of batching controllers suitable for our packaging machines:

Oscillating:
for fast flow powders and granular products.
Screw feeder:
for non flowing powders.
Pump:
for semi-liquid and doughy products.
Peristaltic:
for liquids (watery)
Metered:
for tablets, single pieces etc

Other adaptable systems are available on specific client request.

Accessories:
Technical Characteristics:


Flexographic one colour printer:
for personalised printing.
Thermal-transfer printing rotary marker:
to mark batch numbers and/or expiry dates.
Ink-jet Marker:
to mark batch numbers and/or expiry dates.
Dry embossing rotary marker:
to emboss batch numbers and/or expiry dates.
Easy open system:
to make an indent cut on the packet.
Rotary die cutter for eurolock:
to make eurolock holes.
Orderly collection system:
for an orderly collection of manufacturer packets.
Packet deviator flap:
for the metering of packets into cases.
Product loader:
for automatic hopper feeding of the product.
Case packers:
to automatically meter the packets into cases.
Weight grading machine:
for the control of package weight when exiting, complete with feedback system.

SEE ALL ACCESSORIES>>


No. of tracks: from 2 to 10
Max. Reel diameter: 500 mm.
Packet Length and Width: variable or fixed, in accordance with the number of tracks and the type of packaging to be carried out.
Production speed: up to 300 cycles/min.
Engine: mechanical drive or Brushless motors (on request)
Supply: 400V 50Hz.
Compressed air: 6 bar.


The data reported herein is not legally binding.

With the intent of constantly improving our products, we reserve the right to make any changes as we believe necessary without prior notice.
