Example of some of the packets produced
Range of batching controllers suitable for our packaging machines:
Oscillating: for powders and granular products.
Screw feeder: for non flowing powders.
Pump: for semi-liquid and doughy products.
Peristaltic: for liquids (watery)
Metered: for tablets, single pieces etc.
Other adaptable systems are available on specific client
request. |
|
|

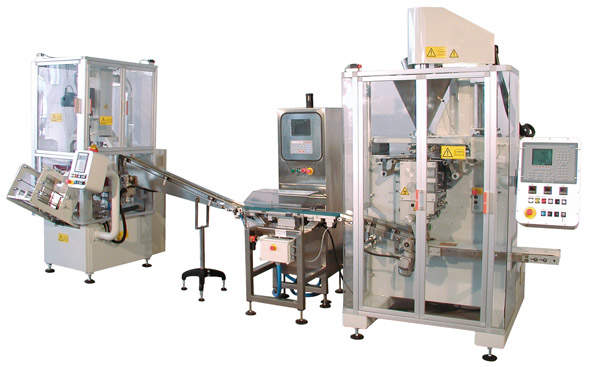

This is a series MF_CB packaging machine combined with a weight grading machine and case packers - series MF BRIO.
This line of packaging is employed in various industrial sectors, for the production of single dose 4 side heat-sealed packets utilising a single reel of film. These packets are then metered and ordered into cases.
By utilising different batching systems it may package all types of products: granular, powders, liquids, doughy products in 1 to 300 cm³ doses, including metered single piece products with specific systems on request.
It is manufactured in 1 or 2 track versions and may reach a max. speed of 130 packets per minute, in accordance with the type of packet to be packed, the characteristics of the product and the type of heat-sealed wrapper utilised.
Thanks to its engine, managed completely by a brushless motor and the touch-screen interface with the operators, this machine permits the repair of synchronisation and functions while in operation, ensuring high performance, and can memorise up to 200 work programmes.
Reliable and simple to use, it does not require high maintenance or qualified personnel, an on-line support system is possible via modem for the control and modification of management software.
This is a compact, harmonious and rounded line, facilitating cleaning activities.
|
|
|
Flexographic one colour printer:
for personalised printing.
Thermal-transfer printing rotary marker:
to mark batch numbers and/or expiry dates.
Ink-jet Marker:
to mark batch numbers and/or expiry dates.
Dry embossing rotary marker:
to emboss batch numbers and/or expiry dates.
Easy open system:
to make an indent cut on the packet.
Orderly collection system:
for an orderly collection of manufacturer packets.
Packet deviator flap:
for the metering of packets into cases.
Product loader:
for automatic hopper feeding of the product.
Case packers:
to automatically meter the packets into cases.
Weight grading machine:
for the control of package weight when exiting, complete with feedback system.
Automatic combination system for pouch filling machines, case packers, bag-packers and coil winders
Other adaptable systems are available on specific client request.
|
| SEE ALL ACCESSORIES>> |
| |
|
No. of tracks: from 2 to 20
Max. Reel diameter: 500 mm.
Packet Length: variable from 30mm to 250mm.
Racket Width: variable.
Production speed: up to 130 packets/min.
Max. package volume: 300 cm 3
Engine: Brushless motors.
Supply: 400V 50Hz.
Compressed air: 6 bar.
|
I The data reported herein is not legally binding.
With the intent of constantly improving our products, we reserve the right to make any changes as we believe necessary without prior
notice.
|
|
|
|
