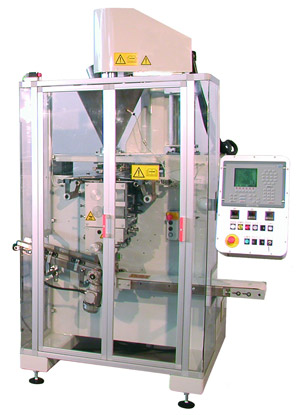

This packaging machine is employed in various industrial sectors; it is a machine with a rotary movement equipped for combination with different batching controllers and is extremely versatile.

The machine utilises a single reel of film and with the appropriate batching controller systems can be employed in the packaging of all products in single dose 4-side heat-sealed packets:
granular, powders, liquids, doughy products, in 0.5 to 300 cm³ doses, as well as systems for single piece products on request.

It is manufactured in 1 or 2 track versions and may reach a max. speed of 150 cycles per minute, in accordance with the packet format, determined by the product to be packaged and the type of heat-sealed wrapper utilised.

Thanks to its engine, managed completely by a brushless motor and the touch-screen interface with the operators, this machine permits the repair of synchronisation and functions while in operation, ensuring high performance, and can memorise up to 200 work programmes.

Reliable and simple to use, it does not require high maintenance or qualified personnel, an on-line support system is possible via modem for the control and modification of management software.

This is a compact, harmonious and rounded line, facilitating cleaning activities.

Flexographic one colour printer:
for personalised printing.
Thermal-transfer printing rotary marker:
to mark batch numbers and/or expiry dates.
Ink-jet Marker:
to mark batch numbers and/or expiry dates.
Dry embossing rotary marker:
to emboss batch numbers and/or expiry dates.
Easy open system:
to make an indent cut on the packet.
Rotary die cutter for eurolock:
to make eurolock holes.
Orderly collection system:
for an orderly collection of manufacturer packets.
Packet deviator flap:
for the metering of packets into cases.
Product loader:
for automatic hopper feeding of the product.
Case packers:
to automatically meter the packets into case.
Weight grading machine:
for the control of package weight when exiting, complete with feedback system.

Automatic combination system for pouch filling machines, case packers, bag-packers and coil winders

Other adaptable systems are available on specific client request.

The data reported herein is not legally binding.

With the intent of constantly improving our products, we reserve the right to make any changes as we believe necessary without prior notice.
