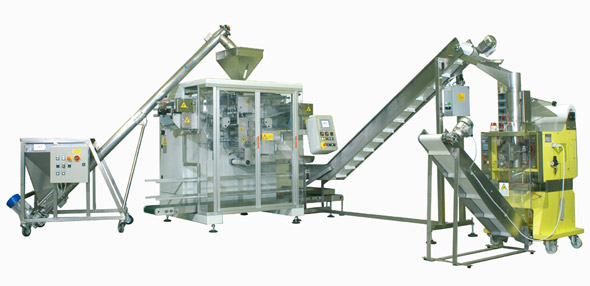

Line of packaging machines with case packers - series "MF_B_KIT"



This is a high speed packaging machine series MF_B combined with a vertical tubular machine.

This line of packaging is employed in various industrial sectors, for the production of single dose 4 side heat-sealed packets utilising a single reel of film. These packets are then pillow packed in various sizes.

By utilising different batching systems it may package all types of products: granular, powders, liquids, doughy products etc.


Examples of final packets

Range of batching controllers suitable for our packaging machines:

Oscillating:
for fast flow powders and granular products.
Screw feeder:
for non flowing powders.
Pump:
for semi-liquid and doughy products.
Peristaltic:
for liquids (watery)
Metered: for tablets, single pieces etc.

Other adaptable systems are available on specific client request.



Accessories:
Technical Characteristics:

Flexographic one colour printer:
for personalised printing.
Thermal-transfer printing rotary marker:
to mark batch numbers and/or expiry dates.
Ink-jet Marker:
to mark batch numbers and/or expiry dates.
Dry embossing rotary marker:
to emboss batch numbers and/or expiry dates.
Easy open system:
to make an indent cut on the packet.
Orderly collection system:
for an orderly collection of manufacturer packets.
Packet deviator flap:
for the metering of packets into cases.
Product loader:
for automatic hopper feeding of the product.
Case packers:
to automatically meter the packets into cases.
Weight grading machine:
for the control of package weight when exiting, complete with feedback system.

Automatic combination system for pouch filling machines, case packers, bag-packers and coil winders

Other adaptable systems are available on specific client request.

SEE ALL ACCESSORIES>>



No. of tracks: from 2 to 20
Max. Reel diameter: 500 mm.
Packet Length: variable from 30mm to 250mm.
Racket Width: fixed on request from Client.
Production speed: up to 250 cycles/min.
Max. package volume: 300 cm³.
Engine: Brushless motors.
Supply: 400V 50Hz.
Compressed air: 6 bar..



The data reported herein is not legally binding.

With the intent of constantly improving our products, we reserve the right to make any changes as we believe necessary without prior notice.
