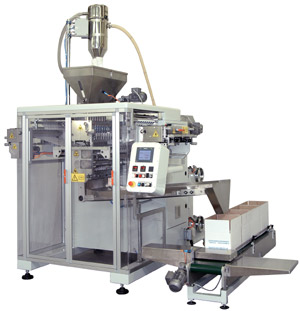

Multi-track packaging machine - series "MF_B"

This packaging machine is employed in various industrial sectors; it is a machine with a continuous rotary movement for high speeds and is equipped with an oscillating batching controller.

The machine utilises a single reel of film and is mainly employed in the packaging of granular products in single dose 4-side heat-sealed packets and when utilising different batching systems it may also package powders, liquids, creams etc.

It is manufactured in versions from 2 to 20 tracks and may reach a speed of 250 cycles per minute, in accordance with the packet format, determined by the product to be packaged and the type of heat-sealed wrapper utilised.

Thanks to its engine, managed completely by a brushless motor and the touch-screen interface with the operators, this machine permits the repair of synchronisation and functions while in operation, ensuring high performance, and can memorise up to 200 work programmes.

Reliable and simple to use, it does not require high maintenance or qualified personnel, an on-line support system is possible via modem for the control and modification of management software.
This is a compact, harmonious and rounded line, facilitating cleaning activities.

Example of some of the packets produced

Range of batching controllers suitable for our packaging machines

Oscillating:
for fast flow powders and granular products.
Screw feeder:
for non flowing powders.
Pump:
for semi-liquid and doughy products.
Peristaltic:
for liquids (watery)
Metered:
for tablets, single pieces etc.

Other adaptable systems are available on specific client request.

Accessories:

Technical Characteristics:

Flexographic one colour printer:
for personalised printing.
Thermal-transfer printing rotary marker:
to mark batch numbers and/or expiry dates.
Ink-jet Marker:
to mark batch numbers and/or expiry dates.
Dry embossing rotary marker:
to emboss batch numbers and/or expiry dates.
Easy open system:
to make an indent cut on the packet.
Rotary die cutter for eurolock:
to make eurolock holes.
Orderly collection system:
for an orderly collection of manufacturer packets.
Packet deviator flap:
for the metering of packets into cases.
Product loader:
for automatic hopper feeding of the product.
Case packers:
to automatically meter the packets into cases.
Weight grading machine:
for the control of package weight when exiting, complete with feedback system.

SEE ALL ACCESSORIES>>

No. of tracks: from 2 to 20
Max. Reel diameter: 500 mm.
Packet length: variable from 30mm to 250mm.
Packet Width: fixed or variable in accordance with the number of tracks
Production Speed: up to 250 cycles/min.
Max. package volume: 300 cm3.
Engine: Brushless motors.
Supply: 400V 50Hz.
Compressed air: 6 bar.

The data reported herein is not legally binding.

With the intent of constantly improving our products, we reserve the right to make any changes as we believe necessary without prior notice.
